The p.thirty is the smallest profile luminaire in the PLANLICHT portfolio, combining a minimalist design with exceptional flexibility for a wide range of architectural lighting applications. Despite its compact 31 × 35 mm profile, it delivers high light output, excellent visual comfort and features an integrated driver as standard. The system is available in surface-mounted, suspended, recessed and wall-mounted versions, with direct or direct/indirect light distribution while maintaining the same slim overall height.
A distinctive feature of the p.thirty family is the option of illuminated end caps, while an IP44 version is available for areas requiring increased protection against moisture. The luminaire can be tailored to virtually any interior concept with custom housing and cable colours, alongside a choice of satin, microprismatic, U-shaped diffuser or Opto-Balance Darklight® optics.
Technical Overview

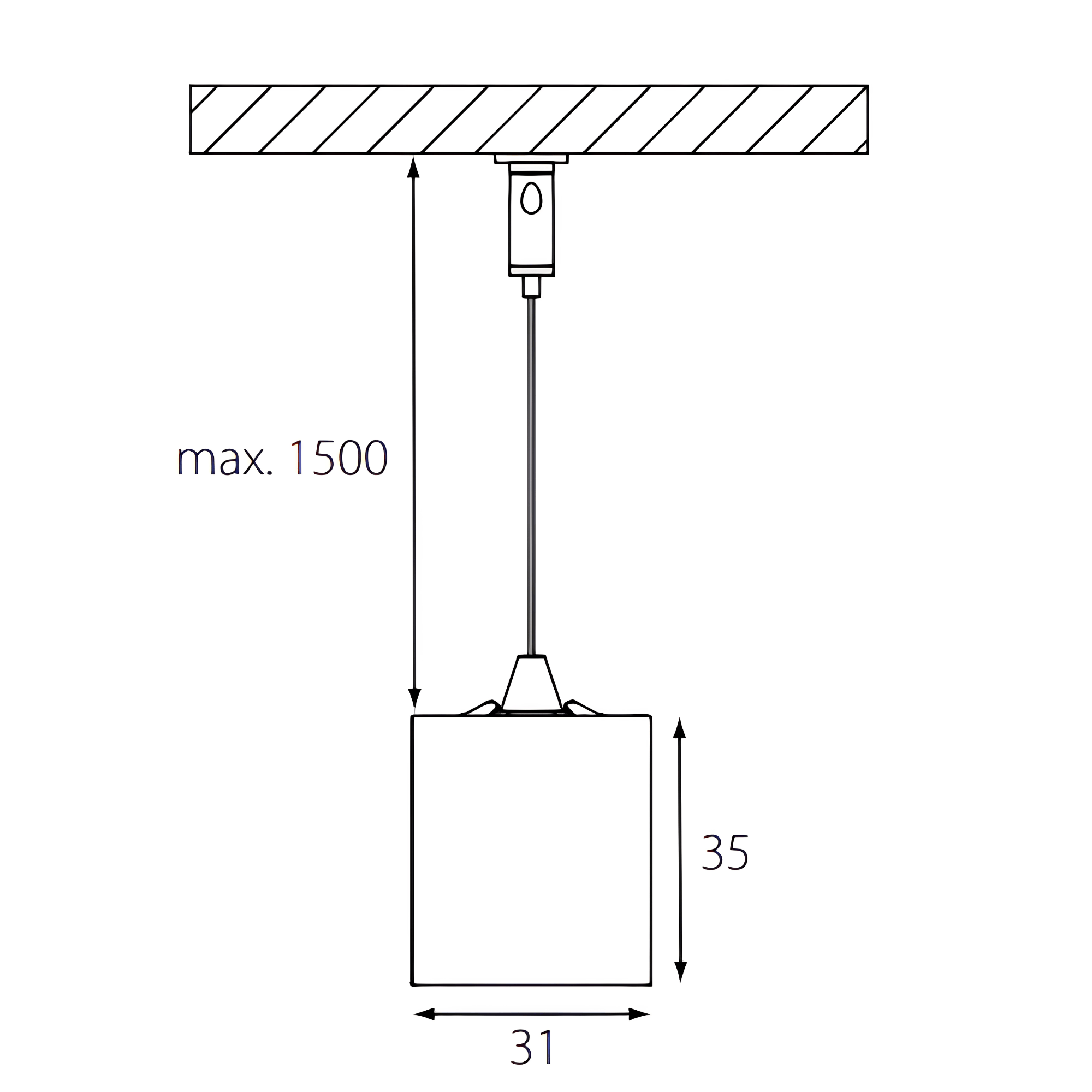

- Dimensions: 31 × 35 mm profile
- Mounting options: Surface, suspended, recessed and wall-mounted
- Light distribution: Direct or direct/indirect
- Luminous flux: Approx. 680 – 12,400 lm
- System power: Approx. 8 – 97 W
- Luminous efficacy: Up to 142 lm/W
- Colour temperature: 2700 K, 3000 K, 4000 K, Dynamic White (2700–6500 K)
- Colour rendering: CRI >80 or CRI >90

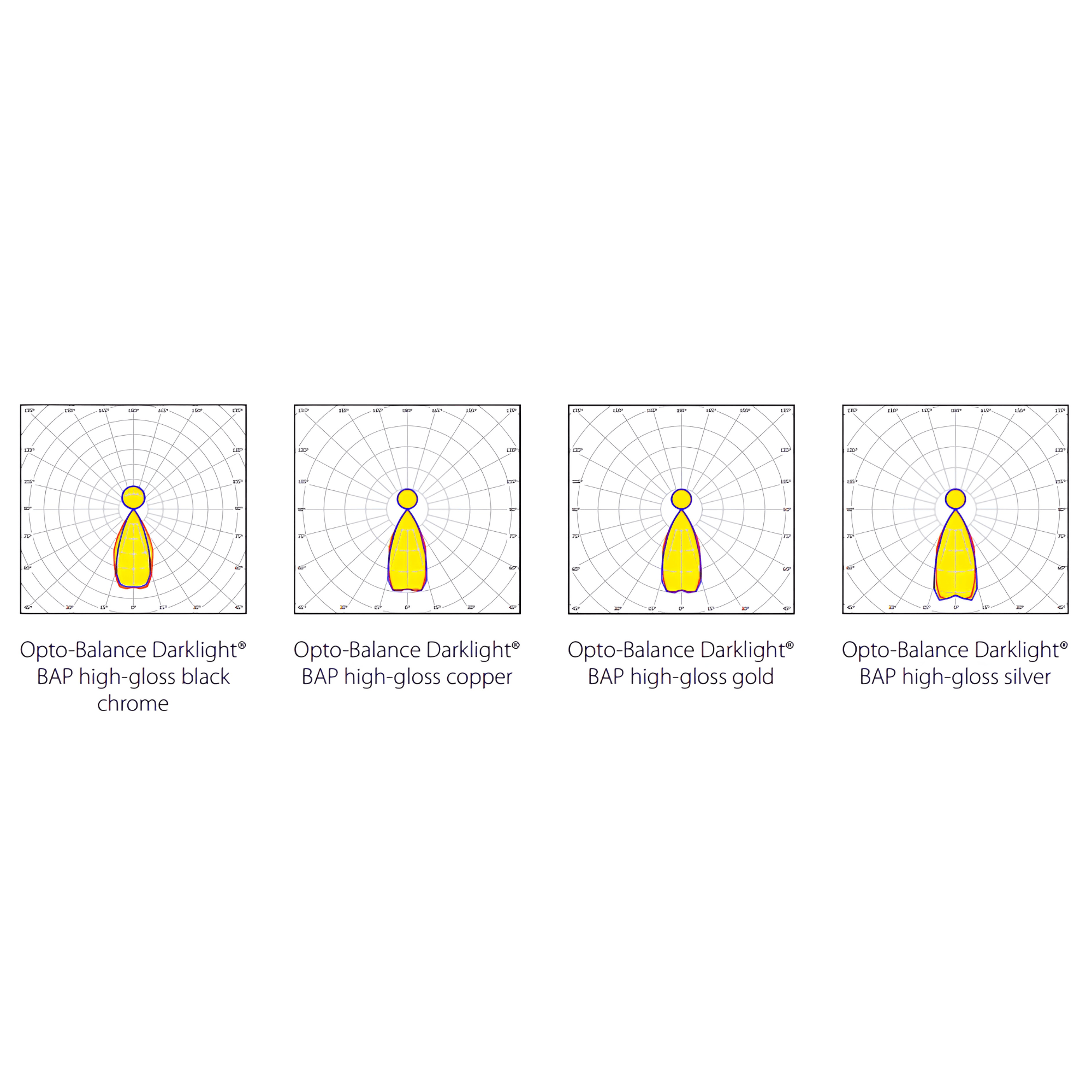

- Optics: Satin diffuser, microprismatic diffuser, U-shaped diffuser or Opto-Balance Darklight® louvre
- UGR: Down to <19 (depending on optics)
- Control: ON/OFF or DALI dimmable
- Protection rating: IP20, optional IP44
- Lifetime: >60,000 hours
- Colours: White, black, silver or custom RAL finishes, with custom cable colours available.
Για περισσότερες πληροφορίες και περισσότερες επιλογές χαρακτηριστικών επικοινωνήστε μαζί μας.
